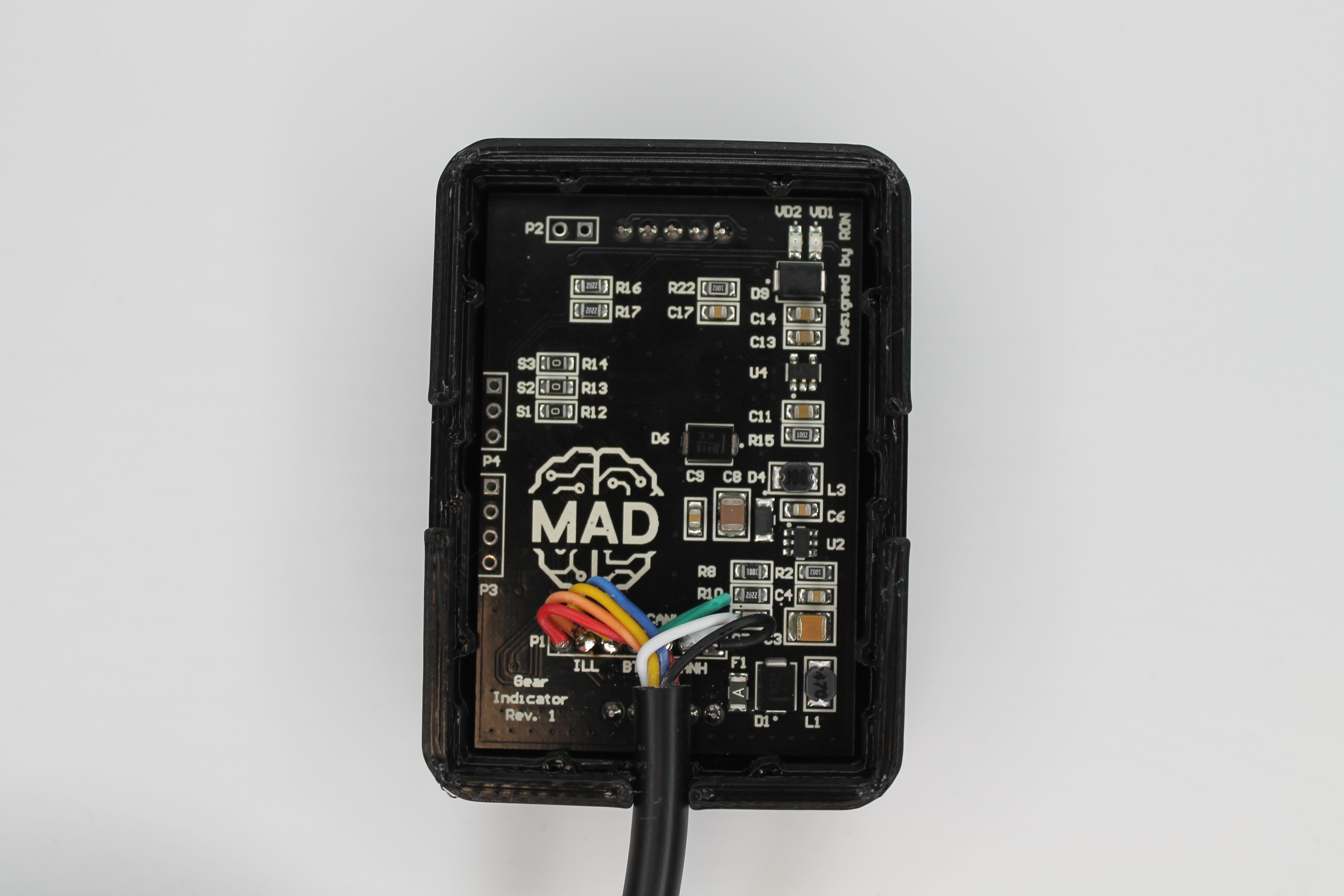

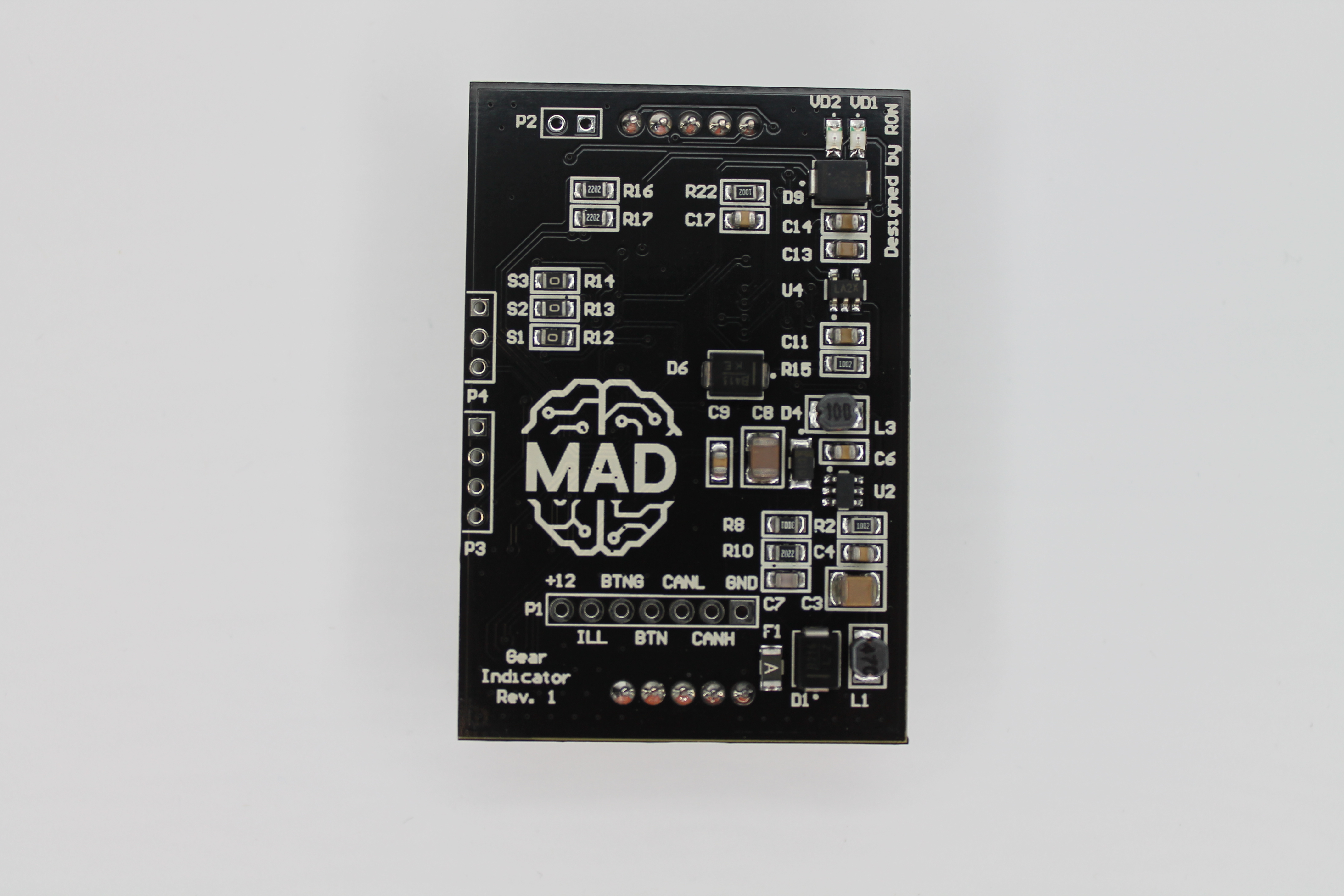

Pinout
№ |
Designation |
Purpose |
|---|---|---|
1 |
+12 |
Device power supply (+12 V DC) |
2 |
ILL |
Brightness control input (connection to side lights/illumination). +12 V applied enables high brightness mode (H), disconnected - low brightness mode (L) |
3 |
BTNG |
Control button ground (common wire for button) |
4 |
BTN |
Control button signal input (shorted to BTNG). Short press - temporary brightness switch, long press (>900 ms) - enter settings mode |
5 |
CANL |
CAN bus, Low line (connect to vehicle CANL or CAN DSG Controller) |
6 |
CANH |
CAN bus, High line (connect to vehicle CANH or CAN DSG Controller) |
7 |
GND |
Common wire (ground, power supply) |
Note
Power: +12 V and GND - required for device operation.
CAN interface: for operation with DQ200 (0AM) and DQ250 (02E) selectors, CANL and CANH must be connected to the corresponding CAN bus or to our CAN DSG Controller.
Button: connected between BTN and BTNG (normally open, momentary).
ILL: optional, if no signal is present device operates in L mode (low brightness) until first configuration.
