Installation

Pinout

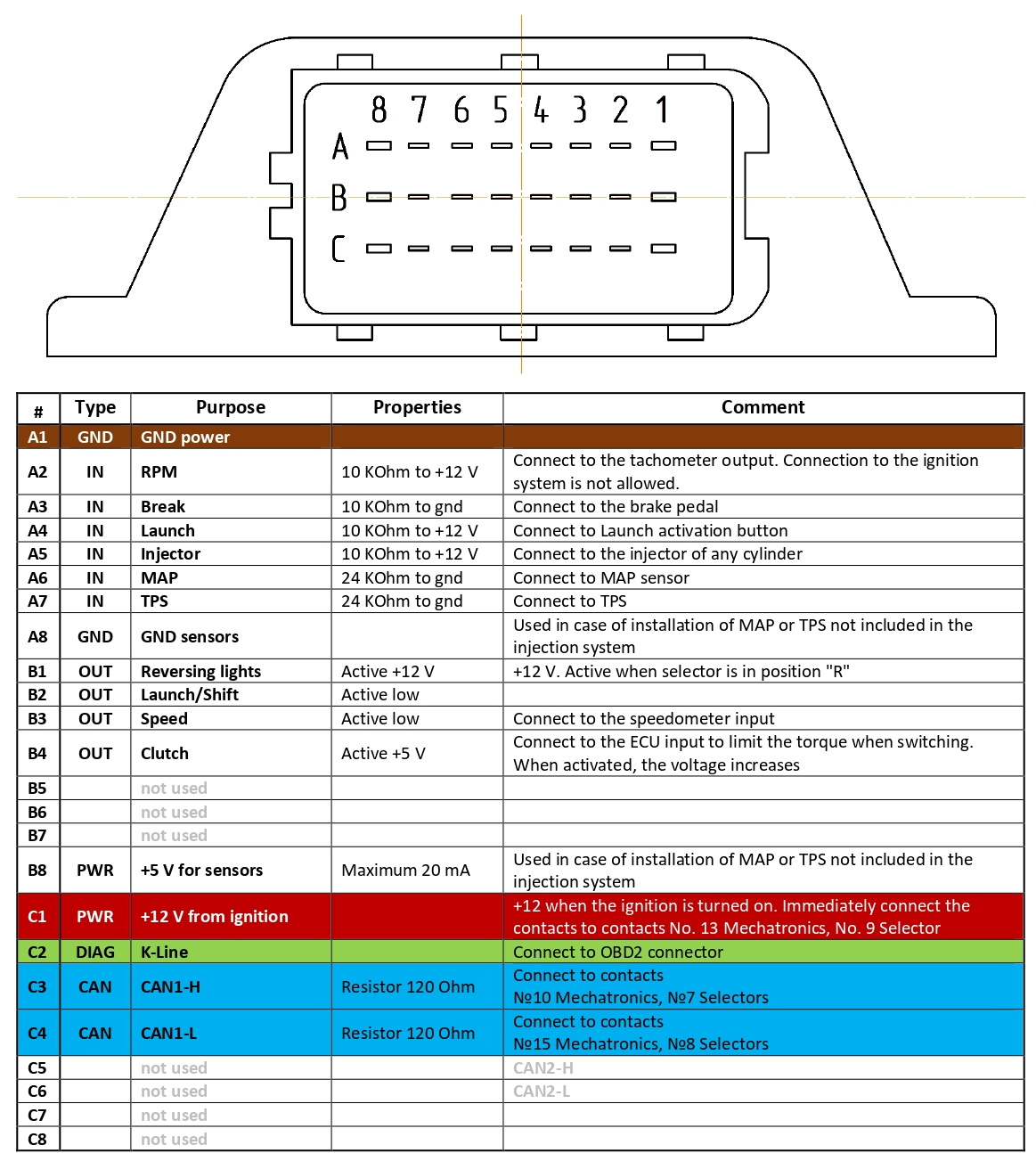

Location and purpose of controller pins

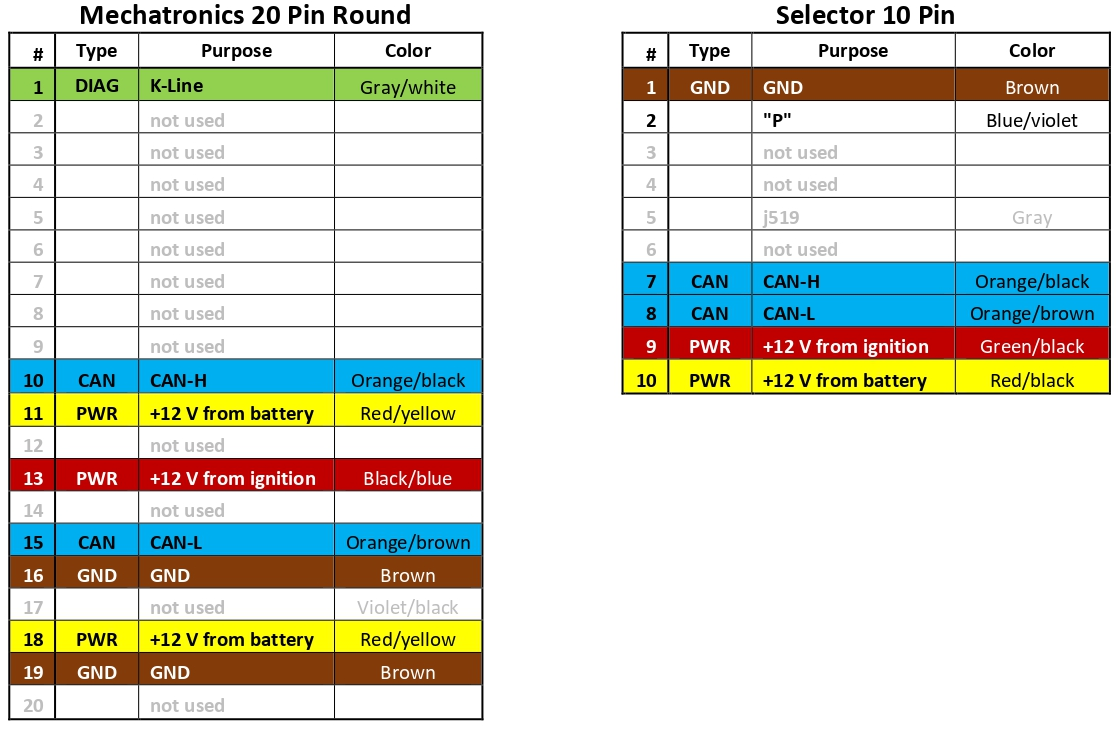

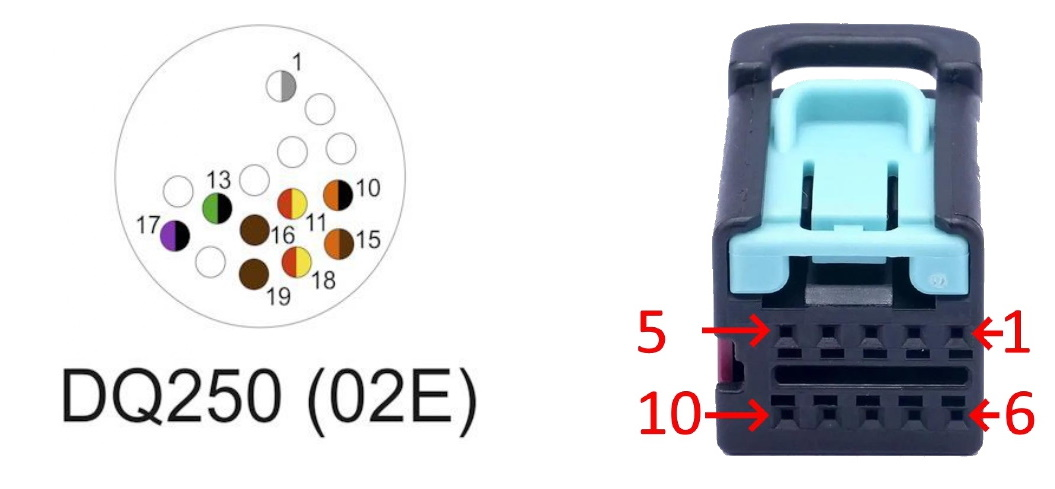

Location and purpose of mechatronics terminals

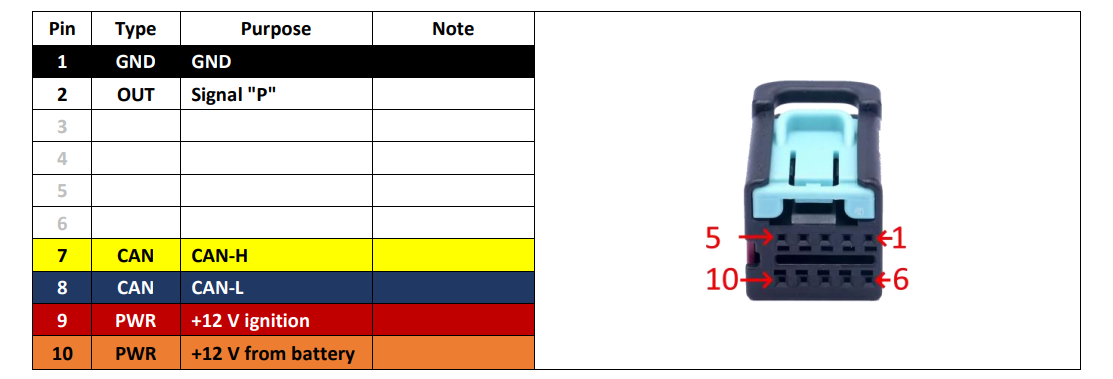

Location and purpose of selector terminals

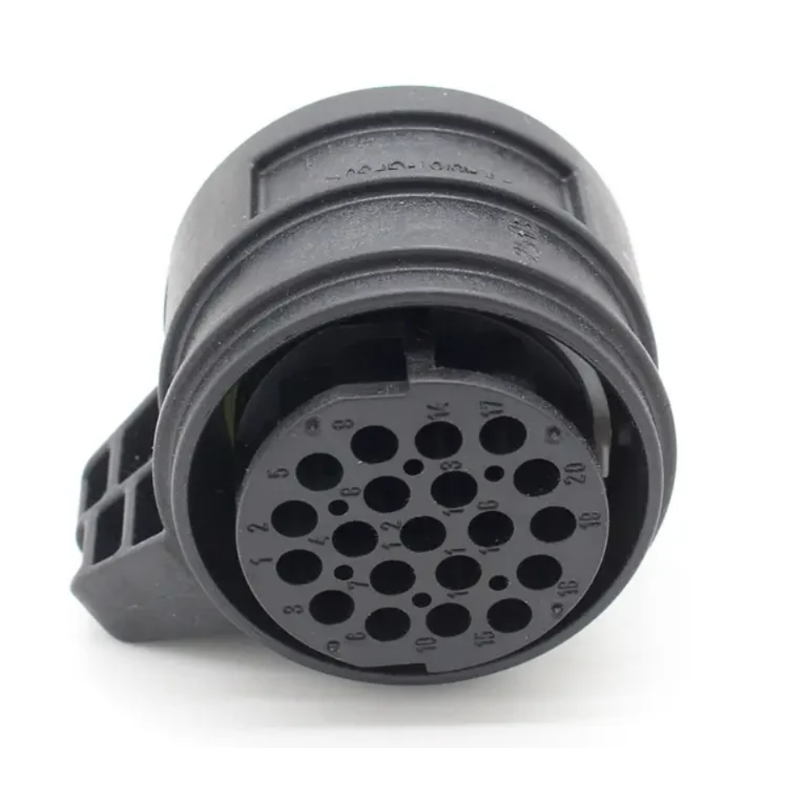

Mechatronics DQ250 connector, catalog number 1J0927320

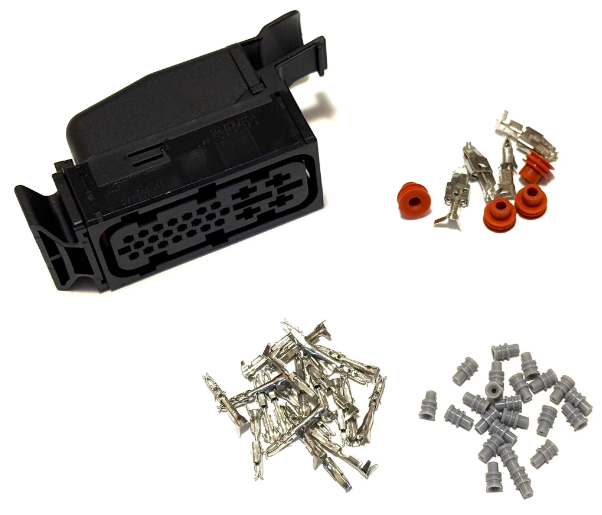

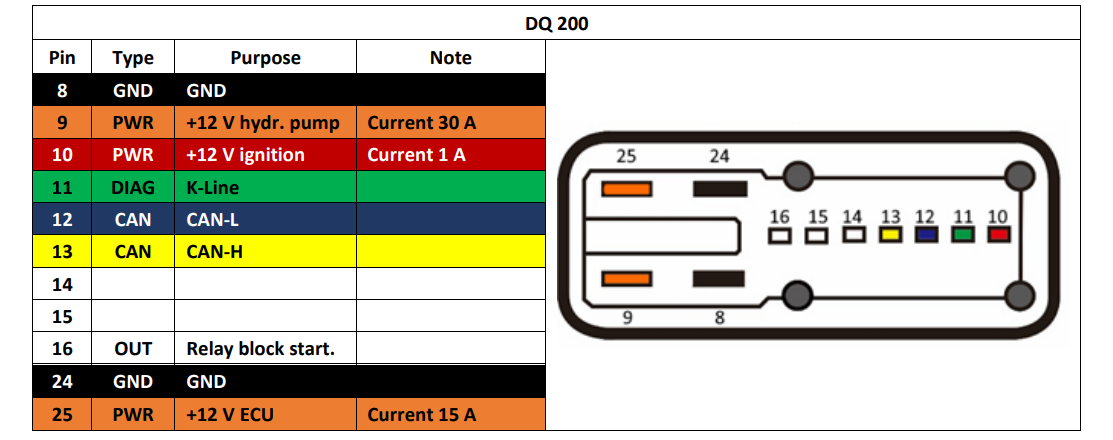

Mechatronics DQ200 connector, catalog number 1H0973327A

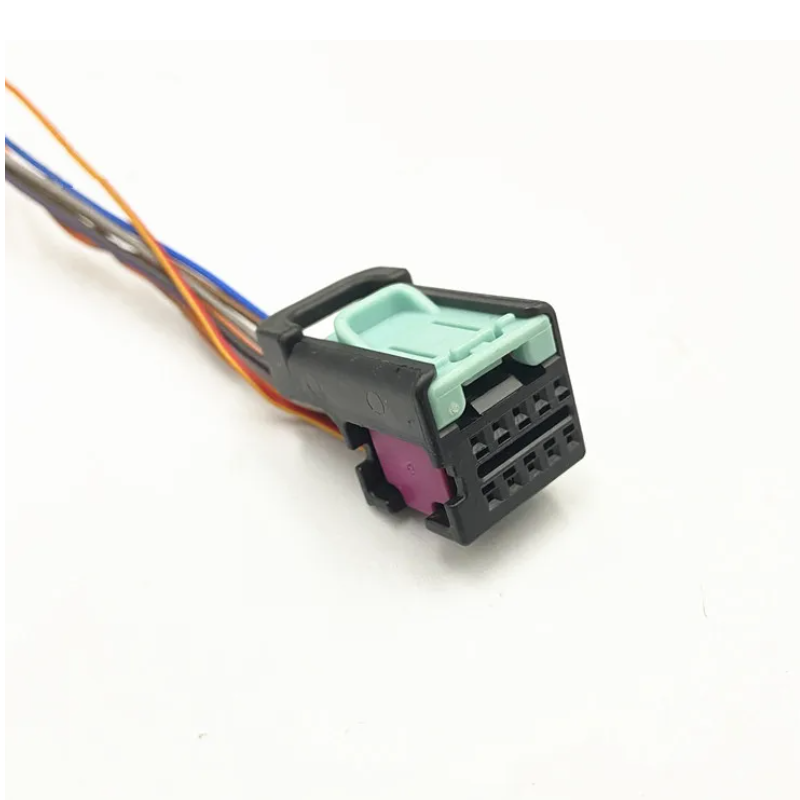

Selector connector, catalog number 1K0972776

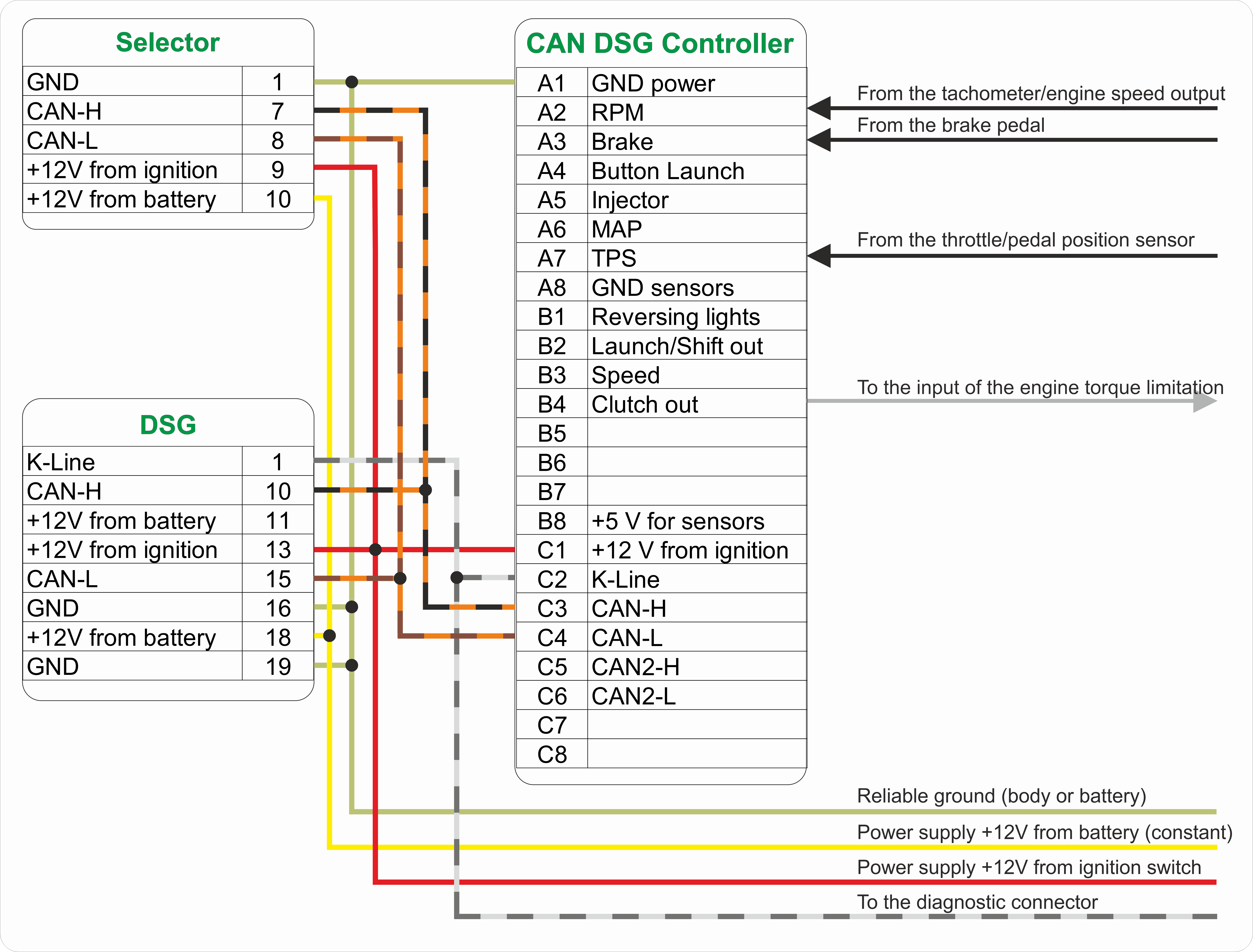

The basic connection diagram is shown in the figure below.

Attention

The mechatronics and selector CAN bus must be connected directly to the controller. Connection to the general vehicle CAN bus is not allowed!
