Usage

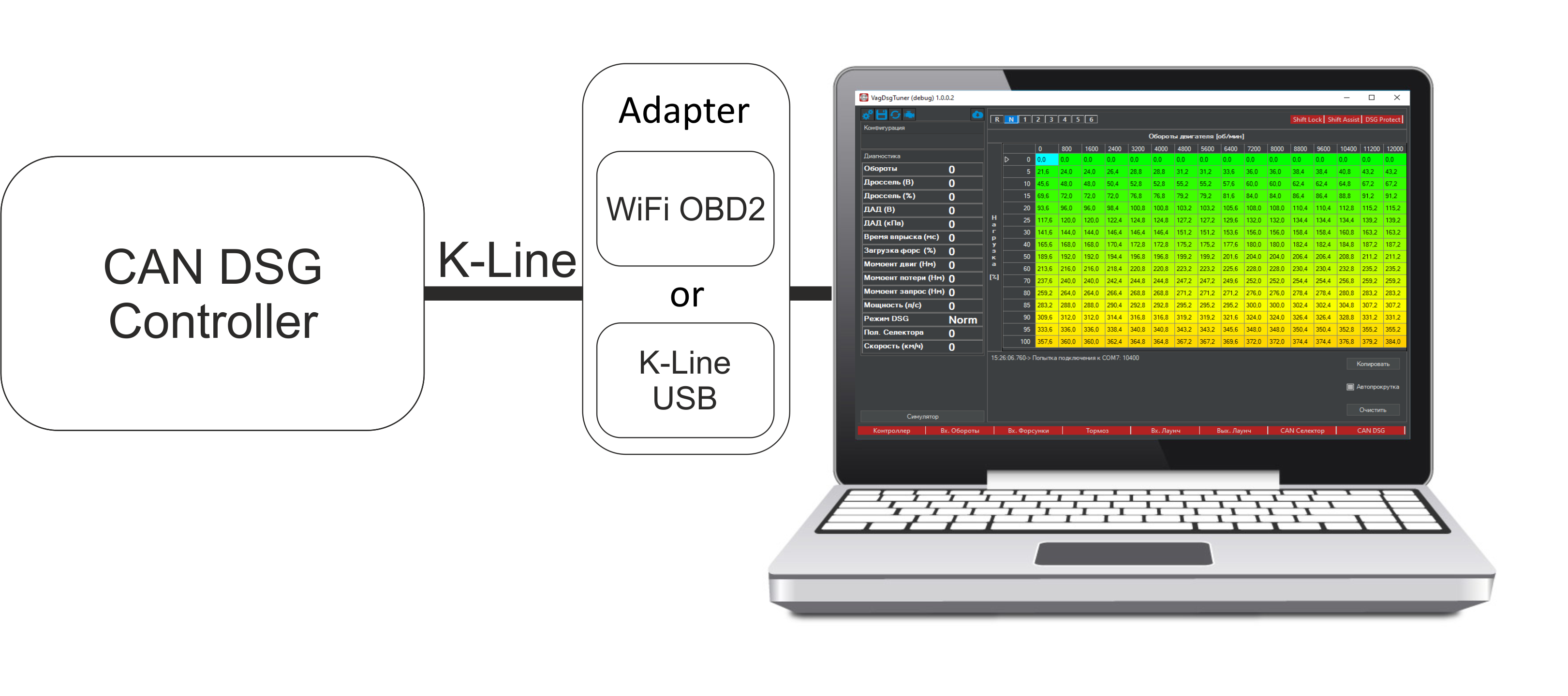

For configuring the controller, specialized software VagDsgTuner (hereinafter referred to as the shell) has been developed. The current version of the shell is available at link. The connection between the controller and the shell is established via the K-line interface. The KWP2000 communication protocol with extended functionality.

Main shell features:

• Setting up the controller configuration for the engine.

• Displays diagnostic parameters of the controller.

• Recording diagnostic parameter logs in CSV format.

• Displays DSG status and selector mode.

• Display and reset of DSG mechatronics errors.

• Editing the torque/load table in “online” mode.

• Display of the mode point of the moment.

• Updating the controller software.

• User interface
  • The settings menu
    • Connection
    • Logs
    • Configuration
  • Fault menu
  • Update menu
• Setting
  • Torque calculation
    • TPS
    • MAP
    • Injector
    • Formula
  • Torque limitation
  • Torque on wheels
  • Speed output
  • Reverse output
  • Launch
• Update
