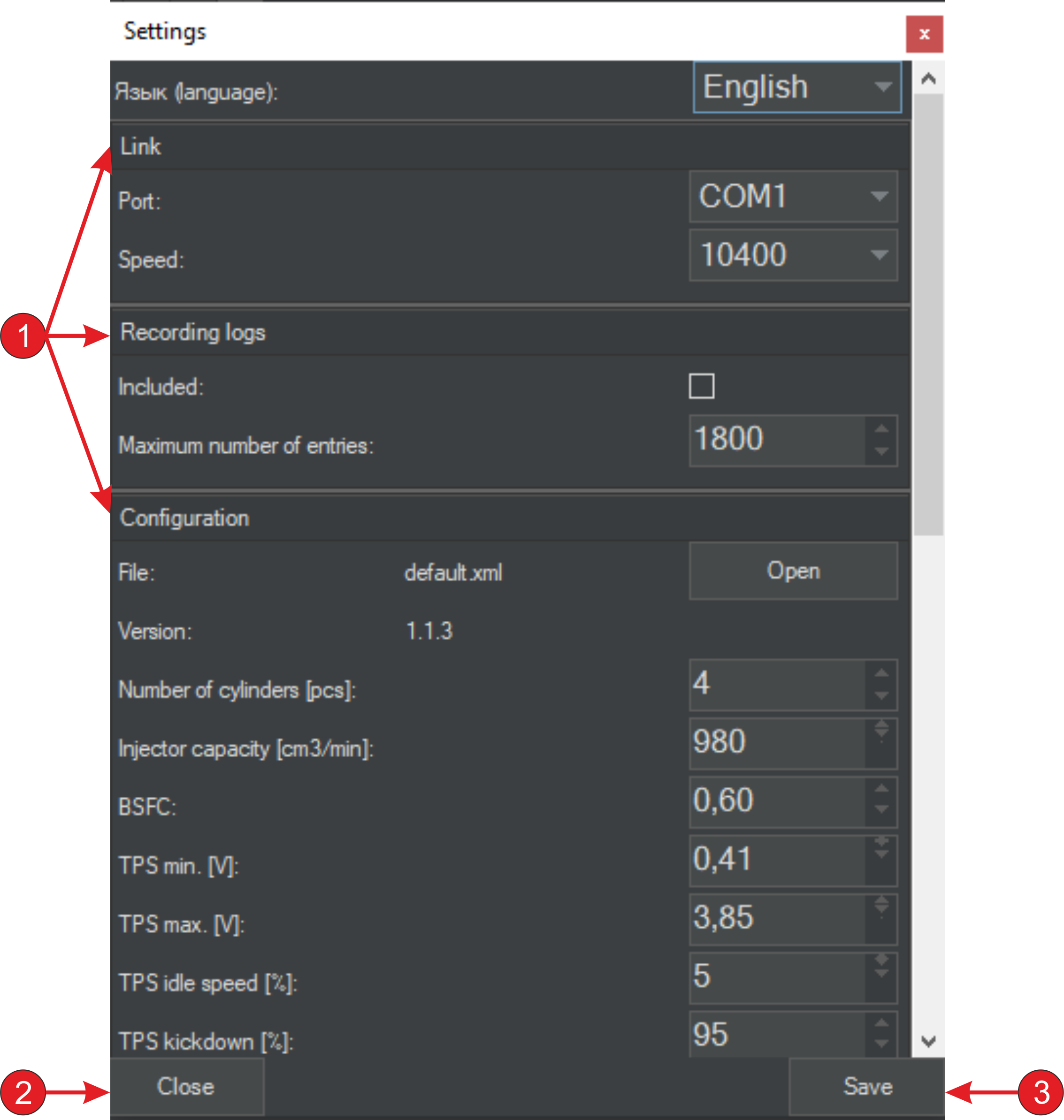

The settings menu

---

Number	Appointment
1	Areas of settings
2	Close the settings menu
3	Save all the settings in the controller and to the file

Язык(language) - selecting the program language.

Connection

Port - selection of a COM port for communication.

Speed - choice of maximum communication speed.

Logs

Enabled - activation of the recording of logs.

Maximum number of entries - the maximum number of records in one log file, if 0 - record before connection is completed.

Configuration

File - Select a configuration file on PC.

Version - version of the configuration file.

Number of cylinders * - the number of cylinders in the engine.

Injector flow * - the performance of one nozzle.

BSFC * - specific fuel consumption.

TPS min. [V] - minimum voltage of the throttle position sensor.

TPS max [V] - maximum voltage of the throttle position sensor.

TPS idle speed [%] - throttle position threshold for activating idle.

TPS kickdown [%] - throttle position threshold for activating kickdown.

MAP voltage min. [V] - minimum voltage of the absolute air pressure sensor.

MAP voltage max. [V] - maximum voltage of the absolute air pressure sensor.

MAP pressure min. [kPa] - minimum pressure of the absolute air pressure sensor.

MAP pressure max. [kPa] - maximum pressure of the absolute air pressure sensor.

MAP max. pressure in car [kPa] - maximum pressure of the absolute air pressure sensor for a specific car.

Speed Multiplier - a multiplier for the impulses of speed output.

Speed output [pulses/meter] - the number of pulses per meter for speed out.

Torque calculation - algorithm for calculating the torque to send to DSG.

Torque max. [Nm] - torque limitation for sending to DSG.

Wheel torque limit [%] - limitation of the requested torque on wheels to send to DSG.

Wheel torque increase [%] - tilt of the requested torque on the wheels to send to the DSG.

Target idle speed [rpm] - target idle speed of the engine.

Launch. Clamping stiffness - clutch preload in Launch mode.

Launch. Throttle threshold [%] - throttle threshold for activating Launch mode.

Sending RPM to can - sending engine speed to DSG.

DSG diagnostics - request for diagnostic packages from DSG mechatronics.

* - parameters for calculating the torque according to the formula
